A table router is an essential tool for both professional craftsmen and enthusiastic DIYers who want to create precise profiles, joints and edges in wood. With a table router, you can perform work with high precision and consistency that would otherwise require great craftsmanship experience. In this article, you’ll get an overview of what you should know before investing in a table router, what types exist, and which factors are most important for your choice.
The article presents a wide range of table routers – from compact models to powerful stationary solutions. The aim is to provide an overview of features, areas of use and price levels so that you can more easily assess which type best suits your projects. The product information is based on publicly available descriptions from manufacturers and retailers and has been summarised to provide a clear and informative overview.
Factors to consider when buying a table router
When choosing a table router, you should consider motor power, precision, ease of use and safety. Here we look at some of the most important considerations.
1. Motor power and speed
The motor power determines how strong and fast you can work. A more powerful motor (typically 1500–2000 W) allows you to process harder types of wood and larger cutters. At the same time, variable speed is an advantage as it allows you to adjust the rotation speed to the material and cutter size.
2. Table size and stability
A solid and level table is crucial for precision. Larger tables provide better support for the workpiece, especially for long or wide pieces of wood. The material of the table – often cast iron, aluminium or steel – affects stability and vibration damping.
3. Adjustment options
A good table router should have precise adjustment options for height and angle. Fine adjustment of the cutter height makes it easier to achieve accurate cuts, while an adjustable parallel fence helps guide the workpiece safely through the router.
4. Safety and dust extraction
Routing produces both dust and chips, so effective dust extraction is important for a healthy working environment. You should also choose a model with a safety switch, protective cover and the option to secure the workpiece to avoid accidents.
5. Accessories and compatibility
Consider which cutters and accessories fit the machine. Some models come with adapters or interchangeable collets, allowing you to use cutters in different sizes. A wide range of accessories increases the machine’s versatility and flexibility.
Products in focus

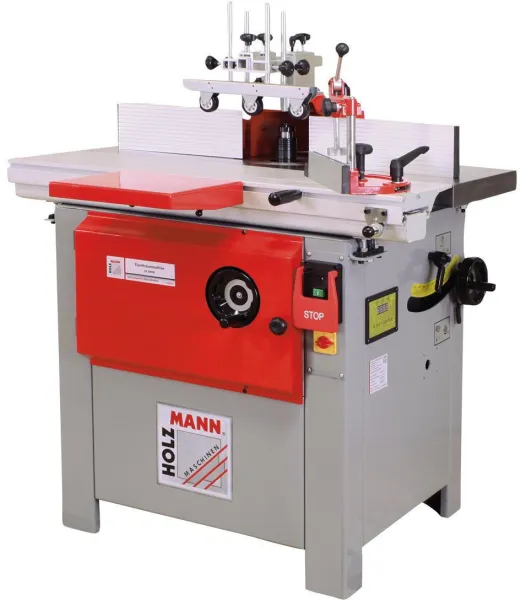

The Holzmann FS200SF is a 400V table router designed for precision woodwork. It combines a solid cast iron table with a smooth aluminium table extension, providing a large and stable working surface.
The machine features four speeds that can be changed via a front door, making it easy to adjust the routing speed to different materials and tools. The spindle can be tilted backwards up to 45°, and it can rotate both clockwise and counterclockwise.
A high-quality aluminium fence and hold-down device ensure precise guidance of the workpiece during operation. The speed can be read directly on a digital display, contributing to accurate control.
The delivery includes a mitre fence, a router hood, and a hold-down device, making the machine ready for a wide range of routing tasks right away.
- Stable working surface: Cast iron table combined with smooth aluminium extension for stability and space.
- Variable speed: Four speeds with easy access via the front door.
- Adjustable spindle: Can be tilted backwards up to 45° for flexible machining.
- Digital display: Speed is shown on a digital display for precise control.
- Quality fence: Aluminium fence and hold-down device ensure precise results.
Pros and cons
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Pros and cons
Pros
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Pros
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 1000 x 360 mm
- Table size (aluminium table): 1000 x 250 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. tool diameter above the table: 180 mm
- Max. tool diameter below the table: 180 mm
- Max. clamping height: 100 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: approx. 260 kg
- Model: FS200SF-400V
- Manufacturer: Holzmann

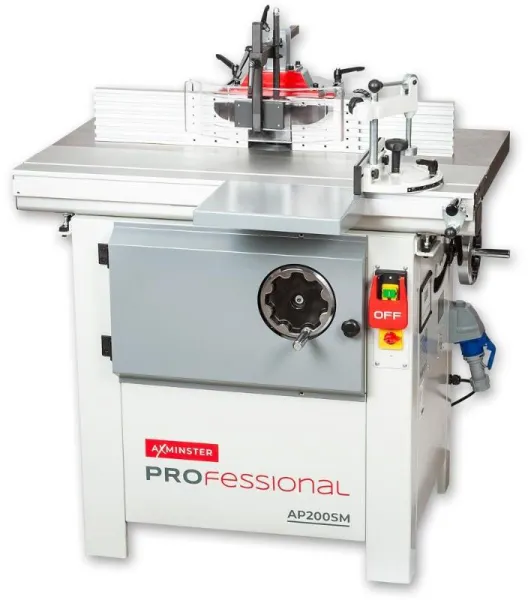

The Axminster Professional AP200SM Table Router 230 is designed for precision woodwork and combines strength, stability and flexibility. The ground cast iron table provides a flat and vibration-free surface that ensures accurate results when routing.
The machine is powered by a 2.8 kW single-phase motor that delivers sufficient power for demanding tasks. The user can choose between four spindle speeds from 1,800 to 9,000 revolutions per minute, allowing the speed to be adjusted to different tools and materials. A digital display shows the current speed for precise control.
The spindle has a diameter of 30 mm and can be tilted from +5° to -45°, enabling advanced routing operations. A stop setting at 0° makes it easy to return to the vertical position. The machine is equipped with two 100 mm extraction ports – one on the spindle hood and one in the frame – for effective removal of chips and dust.
As standard, the AP200SM comes with a sliding table with mitre fence and clamping device to support precision work. Additional accessories such as a frame table and tenoning plate can be purchased for extra flexibility when working on larger workpieces.
The machine requires a 16-amp power supply and is recommended for use with a type C circuit breaker. It is suitable for both professional workshops and experienced users who want a stable and versatile spindle moulder.
- Powerful motor: 2.8 kW single-phase motor delivers high performance for demanding tasks.
- Four speeds: Adjustable spindle speeds from 1,800 to 9,000 rpm with digital display.
- Tilt function: The spindle can be adjusted from +5° to -45° for flexible routing.
- Effective extraction: Two 100 mm extraction ports keep the work area clean.
- Solid construction: Ground cast iron table ensures stability and precision.
- Included sliding table: Includes mitre fence and clamping device for precision work.
Pros and cons
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
Cons
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
Cons
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Specifications
- Model: AP200SM
- Item number (SKU): AX107703
- Voltage: 230 V
- Power: 2.8 kW
- Spindle diameter: 30 mm
- Spindle speeds: 1,800, 3,000, 6,000 and 9,000 rpm
- Spindle tilt: +5° to -45°
- Spindle travel: 100 mm
- Max. spindle projection above table: 100 mm
- Max. tool diameter above table: 200 mm
- Max. tool diameter below table: 180 mm
- Extraction ports: 2 x 100 mm
- Required extraction capacity: 1,000 m³/h
- Table size: 1,000 mm x 360 mm
- Table height: 900 mm
- Dimensions (L x W x H): 1,010 x 690 x 900 mm
- Weight: 218 kg
- Sound pressure level: 77.1 dB(A)
- Plug type: UK 16A plug with 3 pins
- User level: Retail/professional use

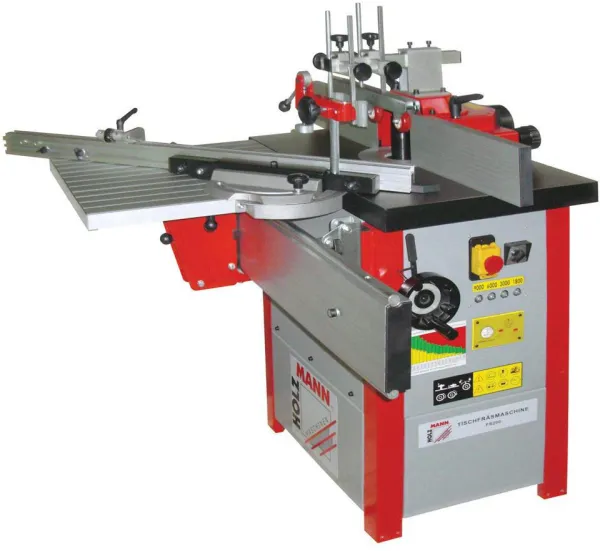

The Holzmann FS200 is a table router designed for precise and stable routing of wooden parts. The machine is equipped with a solid cast iron table that ensures vibration-free operation and precise results during work.
The fence is of high quality and features both a hold-down system and fine adjustment, allowing safe and precise operation. The electronic LED speed display provides a clear overview of the spindle speed.
The machine offers four standard speeds, allowing the user to adapt the routing to different materials and tool sizes. The spindle height can be easily adjusted via a handwheel, and accessories such as a router hood, aluminium fence, hold-down and sanding device are included.
The FS200 can also be expanded with a rolling table as an optional accessory, increasing flexibility when working with larger workpieces.
- Cast iron table: Provides stability and reduces vibrations during work.
- LED speed display: Clearly shows the current spindle speed.
- Four speeds: Allows adaptation to different routing tasks.
- Precise fence: With hold-down system and fine adjustment for accurate results.
- Expandability: Rolling table can be purchased and retrofitted.
Pros and cons
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros and cons
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Specifications
- Model: FS200-400V
- Motor power (S1/S6): 2800 W / 3750 W
- Voltage: 400 V
- Table size: 690 × 480 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. milling diameter: 200 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 × 120 mm
- Weight: 155 kg
The Holzstar TF 190SE is a stationary table router designed for precise milling work in wood. It is equipped with a massive grey cast iron table that provides a stable and vibration-free working surface, contributing to precise results.
The machine features a milling unit made of grey cast iron that can be tilted from +5° to -30°, offering flexibility for various milling tasks. The milling spindle can rotate both clockwise and counterclockwise, and the speed is easily adjusted via belt change. The current speed is clearly displayed with LED light on the front.
A hold-down device helps to guide the workpiece safely during operation, and a sliding table as well as a chassis can be purchased as accessories. The combination of a powerful motor and solid construction makes the machine suitable for both professionals and demanding hobby users.
- Solid construction: Cast iron table and milling unit ensure stability and precision.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible machining.
- LED speed display: Provides clear information about the selected speed.
- Powerful motor: 2.2 kW drive motor with four speeds up to 9000 revolutions per minute.
- Hold-down device: Ensures safe and precise guidance of the workpiece during milling.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive power: 2.2 kW
- Power consumption: 2.8 kW
- Milling speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt change
- Speed display: LED on the front of the machine
- Milling unit tilt range: -5° to +30°
- Milling spindle length: 100 mm
- Max. tool diameter lowerable: 200 mm
- Spindle diameter: 30 mm
- Extraction connection diameter: 100 mm
- Work table (L×W): 710 × 640 mm
- Table height: 900 mm
- Sliding table length: 1200 mm
- Sliding table width: 700 mm
- Sliding table height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: approx. 174 kg
- Item number (SKU): SM-5901933

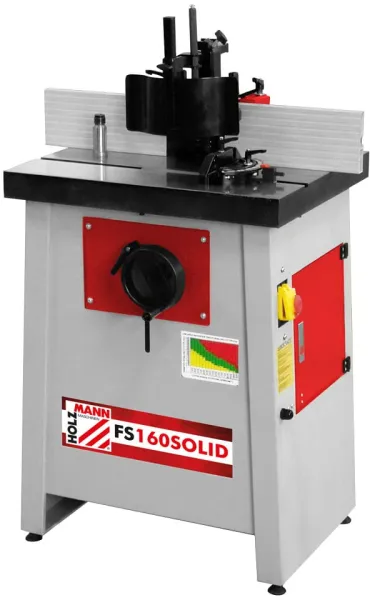

The Holzmann FS160 Solid 230V is a stationary table router made of cast iron that provides high stability during operation. The firm and stable base ensures that the machine remains secure even during demanding routing tasks.
The machine is equipped with a 2200 W motor powered by 230 V electricity, providing sufficient power for both fine and heavy routing work. The dynamically balanced spindle contributes to precise cuts and reduces vibrations during operation.
The table measures 620 x 510 mm and has a working height of 860 mm, allowing for an ergonomic working position. The router spindle has a diameter of 30 mm and can operate at four different speeds – 1400, 4000, 6000, and 9000 revolutions per minute – allowing the user to adjust the speed to the material and task.
The machine features a 100 mm extraction port, allowing connection to a dust extraction system for a cleaner working environment. The maximum clamping height is 105 mm, and the table opening is 160 mm, providing space for various tool sizes. The total weight of 126 kg underscores the machine’s solid construction.
- Powerful motor: 2200 W motor provides high performance for demanding routing tasks.
- Stable construction: Cast iron table and solid base ensure vibration-free operation.
- Variable speed: Four spindle speeds (1400–9000 rpm) for different materials.
- Ergonomic working height: Table height of 860 mm ensures a good working position.
- Effective extraction: 100 mm extraction port for connecting a dust extraction system.
Pros and cons
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Specifications
- Motor power: 2200 W
- Voltage: 230 V
- Table size: 620 × 510 mm
- Table height: 860 mm
- Extraction port: 100 mm
- Router spindle diameter: 30 mm
- Router spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Maximum clamping height: 105 mm
- Table opening: 160 mm
- Maximum tool diameter under the table: 150 mm
- Sound power level: 103 dB(A)
- Sound pressure level: 89.5 dB(A)
- Weight: 126 kg
- Item number (SKU): FS160SOLID-230V
The Holzmann FS200 is a table router designed for precision work in wood. The machine is equipped with a solid cast iron table that provides stability during work, and an aluminium milling fence with fine adjustment that ensures accurate results.
The router has four standard speeds and an electronic LED display that shows the current spindle speed. This makes it easier to adjust the speed for different materials and milling tasks.
The spindle can be adjusted with a handwheel, and the machine comes with a sanding drum, milling hood and aluminium fence. A rolling table can be purchased as an accessory and retrofitted if required.
The FS200 is designed for users who want a combination of power, precision and flexibility in a compact table router for the workshop.
- Cast iron table: Provides high stability and reduces vibrations during work.
- LED speed display: Precisely shows the spindle speed.
- Four speeds: Allows adjustment for different milling tasks.
- Finely adjustable aluminium fence: Ensures precise cuts and consistent results.
- Includes accessories: Comes with sanding drum, milling hood and aluminium fence.
Pros and cons
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Pros and cons
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 230 V
- Table size: 690 x 480 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. tool diameter above the table: 190 mm
- Max. tool diameter below the table: 190 mm
- Max. clamping height: 105 mm
- Spindle: 100 mm
- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 155 kg
- Model: FS200-230V
- Manufacturer: Holzmann
The Holzstar TF 190SE is a table router made of grey cast iron, providing a stable and vibration-free working surface. The large milling unit can be tilted from +5° to -30°, allowing angled and complex milling operations to be carried out with high accuracy.
The machine is equipped with a powerful 2.2 kW motor, and the speed can be easily changed via a multi-V-belt system. The current speed is clearly displayed with LED light on the front of the machine, giving the user a good overview during operation.
The milling fences are made of aluminium and can be finely adjusted for precise guidance of the workpiece. A hold-down device ensures stable guidance, and a sliding table as well as a chassis can be purchased as accessories for additional flexibility.
With a working surface of 710 × 640 mm and a weight of 174 kg, the TF 190SE is designed to remain stable during operation. It combines performance, precision, and user-friendliness in a machine suitable for both professionals and advanced hobby users.
- Solid construction: Table and milling unit made of grey cast iron for high stability.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible machining.
- Easy speed change: Multi-V-belt system with LED speed display.
- Precision control: Finely adjustable aluminium fences and hold-down device.
- Large working surface: 710 × 640 mm table provides plenty of space for larger workpieces.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
Cons
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
Cons
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive power: 2.2 kW
- Power consumption: 2.8 kW
- Milling unit angle: -5° to +30°
- Milling spindle length: 100 mm
- Milling spindle stroke: 100 mm
- Max. tool diameter lowerable: 200 mm
- Spindle diameter: 30 mm
- Speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt
- Speed display: LED on the front of the machine
- Extraction opening: 100 mm
- Worktable: 710 × 640 mm
- Table height: 900 mm
- Sliding table length: 1200 mm
- Sliding table width: 700 mm
- Sliding table height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: 174 kg
- VPE: 1 pc
The Holzstar TF 190E / 400V is a powerful table router designed for stationary use in workshops where precision and operational safety are required. It is typically used for milling profiles, grooves, and edges in wooden parts.
The machine is powered by a 400V motor, which enables stable and efficient power transmission suitable for longer work sessions and processing harder types of wood. The construction is robust and ensures minimal vibrations during operation.
The table router is part of Holzstar's range of machines, known for solid workshop equipment for both professionals and demanding hobby users. The TF 190E model was developed with a focus on precision and user-friendliness in daily operation.
- 400V motor: Provides high and stable performance for demanding milling work.
- Stationary construction: Ensures precision and stability during work.
- Suitable for woodworking: Designed for milling profiles, grooves, and edges.
- Robust construction: Reduces vibrations and increases accuracy.
Pros and cons
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Pros and cons
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Specifications
- Manufacturer: Holzstar
- Model: TF 190E
- Power supply: 400V
- Product type: Table router
- SKU: SM-5901923
Product descriptions
The Holzmann FS200SF is a 400V table router designed for precision woodwork. It combines a solid cast iron table with a smooth aluminium table extension, providing a large and stable working surface.
The machine features four speeds that can be changed via a front door, making it easy to adjust the routing speed to different materials and tools. The spindle can be tilted backwards up to 45°, and it can rotate both clockwise and counterclockwise.
A high-quality aluminium fence and hold-down device ensure precise guidance of the workpiece during operation. The speed can be read directly on a digital display, contributing to accurate control.
The delivery includes a mitre fence, a router hood, and a hold-down device, making the machine ready for a wide range of routing tasks right away.
- Stable working surface: Cast iron table combined with smooth aluminium extension for stability and space.
- Variable speed: Four speeds with easy access via the front door.
- Adjustable spindle: Can be tilted backwards up to 45° for flexible machining.
- Digital display: Speed is shown on a digital display for precise control.
- Quality fence: Aluminium fence and hold-down device ensure precise results.
Pros and cons
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Pros and cons
Pros
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Pros
- Powerful motor with up to 3750 W (S6)
- Large and stable working surface made of cast iron and aluminium
- Four speeds for different routing tasks
- Spindle tilt capability up to 45°
- Digital speed display
Cons
- Requires 400V power supply, which limits use in standard household installations
- The machine weight of about 260 kg makes it less mobile
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 1000 x 360 mm
- Table size (aluminium table): 1000 x 250 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. tool diameter above the table: 180 mm
- Max. tool diameter below the table: 180 mm
- Max. clamping height: 100 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: approx. 260 kg
- Model: FS200SF-400V
- Manufacturer: Holzmann
The Axminster Professional AP200SM Table Router 230 is designed for precision woodwork and combines strength, stability and flexibility. The ground cast iron table provides a flat and vibration-free surface that ensures accurate results when routing.
The machine is powered by a 2.8 kW single-phase motor that delivers sufficient power for demanding tasks. The user can choose between four spindle speeds from 1,800 to 9,000 revolutions per minute, allowing the speed to be adjusted to different tools and materials. A digital display shows the current speed for precise control.
The spindle has a diameter of 30 mm and can be tilted from +5° to -45°, enabling advanced routing operations. A stop setting at 0° makes it easy to return to the vertical position. The machine is equipped with two 100 mm extraction ports – one on the spindle hood and one in the frame – for effective removal of chips and dust.
As standard, the AP200SM comes with a sliding table with mitre fence and clamping device to support precision work. Additional accessories such as a frame table and tenoning plate can be purchased for extra flexibility when working on larger workpieces.
The machine requires a 16-amp power supply and is recommended for use with a type C circuit breaker. It is suitable for both professional workshops and experienced users who want a stable and versatile spindle moulder.
- Powerful motor: 2.8 kW single-phase motor delivers high performance for demanding tasks.
- Four speeds: Adjustable spindle speeds from 1,800 to 9,000 rpm with digital display.
- Tilt function: The spindle can be adjusted from +5° to -45° for flexible routing.
- Effective extraction: Two 100 mm extraction ports keep the work area clean.
- Solid construction: Ground cast iron table ensures stability and precision.
- Included sliding table: Includes mitre fence and clamping device for precision work.
Pros and cons
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
Cons
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Four adjustable speeds with digital display
- Tilt function for flexible routing
- Effective dust and chip removal via dual extraction ports
- Suitable for professional and advanced applications
Cons
- Requires 16A power supply and correct electrical installation
- Relatively heavy machine over 200 kg, which limits mobility
- Additional accessories such as frame table and tenoning plate must be purchased separately
Specifications
- Model: AP200SM
- Item number (SKU): AX107703
- Voltage: 230 V
- Power: 2.8 kW
- Spindle diameter: 30 mm
- Spindle speeds: 1,800, 3,000, 6,000 and 9,000 rpm
- Spindle tilt: +5° to -45°
- Spindle travel: 100 mm
- Max. spindle projection above table: 100 mm
- Max. tool diameter above table: 200 mm
- Max. tool diameter below table: 180 mm
- Extraction ports: 2 x 100 mm
- Required extraction capacity: 1,000 m³/h
- Table size: 1,000 mm x 360 mm
- Table height: 900 mm
- Dimensions (L x W x H): 1,010 x 690 x 900 mm
- Weight: 218 kg
- Sound pressure level: 77.1 dB(A)
- Plug type: UK 16A plug with 3 pins
- User level: Retail/professional use
The Holzmann FS200 is a table router designed for precise and stable routing of wooden parts. The machine is equipped with a solid cast iron table that ensures vibration-free operation and precise results during work.
The fence is of high quality and features both a hold-down system and fine adjustment, allowing safe and precise operation. The electronic LED speed display provides a clear overview of the spindle speed.
The machine offers four standard speeds, allowing the user to adapt the routing to different materials and tool sizes. The spindle height can be easily adjusted via a handwheel, and accessories such as a router hood, aluminium fence, hold-down and sanding device are included.
The FS200 can also be expanded with a rolling table as an optional accessory, increasing flexibility when working with larger workpieces.
- Cast iron table: Provides stability and reduces vibrations during work.
- LED speed display: Clearly shows the current spindle speed.
- Four speeds: Allows adaptation to different routing tasks.
- Precise fence: With hold-down system and fine adjustment for accurate results.
- Expandability: Rolling table can be purchased and retrofitted.
Pros and cons
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros and cons
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Pros
- Solid cast iron construction
- Electronic speed display
- Multiple speed levels
- Precise and adjustable fence
- Option to expand with rolling table
Cons
- Requires 400V power supply
- Relatively heavy machine, which may limit mobility
Specifications
- Model: FS200-400V
- Motor power (S1/S6): 2800 W / 3750 W
- Voltage: 400 V
- Table size: 690 × 480 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. milling diameter: 200 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 × 120 mm
- Weight: 155 kg
The Holzstar TF 190SE is a stationary table router designed for precise milling work in wood. It is equipped with a massive grey cast iron table that provides a stable and vibration-free working surface, contributing to precise results.
The machine features a milling unit made of grey cast iron that can be tilted from +5° to -30°, offering flexibility for various milling tasks. The milling spindle can rotate both clockwise and counterclockwise, and the speed is easily adjusted via belt change. The current speed is clearly displayed with LED light on the front.
A hold-down device helps to guide the workpiece safely during operation, and a sliding table as well as a chassis can be purchased as accessories. The combination of a powerful motor and solid construction makes the machine suitable for both professionals and demanding hobby users.
- Solid construction: Cast iron table and milling unit ensure stability and precision.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible machining.
- LED speed display: Provides clear information about the selected speed.
- Powerful motor: 2.2 kW drive motor with four speeds up to 9000 revolutions per minute.
- Hold-down device: Ensures safe and precise guidance of the workpiece during milling.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Pros
- Robust and vibration-free cast iron construction
- Easy speed change via belt change
- LED speed display on the front
- Option for accessories such as sliding table and chassis
- Suitable for precision work in wood
Cons
- Accessories such as sliding table must be purchased separately
- The machine's weight of 174 kg requires a fixed location in the workshop
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive power: 2.2 kW
- Power consumption: 2.8 kW
- Milling speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt change
- Speed display: LED on the front of the machine
- Milling unit tilt range: -5° to +30°
- Milling spindle length: 100 mm
- Max. tool diameter lowerable: 200 mm
- Spindle diameter: 30 mm
- Extraction connection diameter: 100 mm
- Work table (L×W): 710 × 640 mm
- Table height: 900 mm
- Sliding table length: 1200 mm
- Sliding table width: 700 mm
- Sliding table height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: approx. 174 kg
- Item number (SKU): SM-5901933
The Holzmann FS160 Solid 230V is a stationary table router made of cast iron that provides high stability during operation. The firm and stable base ensures that the machine remains secure even during demanding routing tasks.
The machine is equipped with a 2200 W motor powered by 230 V electricity, providing sufficient power for both fine and heavy routing work. The dynamically balanced spindle contributes to precise cuts and reduces vibrations during operation.
The table measures 620 x 510 mm and has a working height of 860 mm, allowing for an ergonomic working position. The router spindle has a diameter of 30 mm and can operate at four different speeds – 1400, 4000, 6000, and 9000 revolutions per minute – allowing the user to adjust the speed to the material and task.
The machine features a 100 mm extraction port, allowing connection to a dust extraction system for a cleaner working environment. The maximum clamping height is 105 mm, and the table opening is 160 mm, providing space for various tool sizes. The total weight of 126 kg underscores the machine’s solid construction.
- Powerful motor: 2200 W motor provides high performance for demanding routing tasks.
- Stable construction: Cast iron table and solid base ensure vibration-free operation.
- Variable speed: Four spindle speeds (1400–9000 rpm) for different materials.
- Ergonomic working height: Table height of 860 mm ensures a good working position.
- Effective extraction: 100 mm extraction port for connecting a dust extraction system.
Pros and cons
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Pros
- Solid and vibration-free cast iron construction
- Powerful motor with multiple speed settings
- Precise spindle with dynamic balance
- Option to connect dust extraction
- Suitable for small and medium-sized workshops
Cons
- Relatively high weight of 126 kg makes it less mobile
- Requires a fixed workspace and proper extraction for optimal operation
Specifications
- Motor power: 2200 W
- Voltage: 230 V
- Table size: 620 × 510 mm
- Table height: 860 mm
- Extraction port: 100 mm
- Router spindle diameter: 30 mm
- Router spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Maximum clamping height: 105 mm
- Table opening: 160 mm
- Maximum tool diameter under the table: 150 mm
- Sound power level: 103 dB(A)
- Sound pressure level: 89.5 dB(A)
- Weight: 126 kg
- Item number (SKU): FS160SOLID-230V
The Holzmann FS200 is a table router designed for precision work in wood. The machine is equipped with a solid cast iron table that provides stability during work, and an aluminium milling fence with fine adjustment that ensures accurate results.
The router has four standard speeds and an electronic LED display that shows the current spindle speed. This makes it easier to adjust the speed for different materials and milling tasks.
The spindle can be adjusted with a handwheel, and the machine comes with a sanding drum, milling hood and aluminium fence. A rolling table can be purchased as an accessory and retrofitted if required.
The FS200 is designed for users who want a combination of power, precision and flexibility in a compact table router for the workshop.
- Cast iron table: Provides high stability and reduces vibrations during work.
- LED speed display: Precisely shows the spindle speed.
- Four speeds: Allows adjustment for different milling tasks.
- Finely adjustable aluminium fence: Ensures precise cuts and consistent results.
- Includes accessories: Comes with sanding drum, milling hood and aluminium fence.
Pros and cons
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Pros and cons
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Pros
- Solid cast iron construction for stable operation
- Electronic LED display for easy speed control
- Multiple speed levels for different materials
- Option to retrofit a rolling table
- Comes with necessary basic equipment
Cons
- Relatively heavy machine that requires a fixed workspace
- Rolling table is not included as standard and must be purchased separately
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 230 V
- Table size: 690 x 480 mm
- Table height: 900 mm
- Extraction connection: 100 mm
- Max. tool diameter above the table: 190 mm
- Max. tool diameter below the table: 190 mm
- Max. clamping height: 105 mm
- Spindle: 100 mm
- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 155 kg
- Model: FS200-230V
- Manufacturer: Holzmann
The Holzstar TF 190SE is a table router made of grey cast iron, providing a stable and vibration-free working surface. The large milling unit can be tilted from +5° to -30°, allowing angled and complex milling operations to be carried out with high accuracy.
The machine is equipped with a powerful 2.2 kW motor, and the speed can be easily changed via a multi-V-belt system. The current speed is clearly displayed with LED light on the front of the machine, giving the user a good overview during operation.
The milling fences are made of aluminium and can be finely adjusted for precise guidance of the workpiece. A hold-down device ensures stable guidance, and a sliding table as well as a chassis can be purchased as accessories for additional flexibility.
With a working surface of 710 × 640 mm and a weight of 174 kg, the TF 190SE is designed to remain stable during operation. It combines performance, precision, and user-friendliness in a machine suitable for both professionals and advanced hobby users.
- Solid construction: Table and milling unit made of grey cast iron for high stability.
- Adjustable milling unit: Can be tilted from +5° to -30° for flexible machining.
- Easy speed change: Multi-V-belt system with LED speed display.
- Precision control: Finely adjustable aluminium fences and hold-down device.
- Large working surface: 710 × 640 mm table provides plenty of space for larger workpieces.
Pros and cons
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros and cons
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
Cons
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Pros
- Robust and vibration-free cast iron construction
- Easy adjustment of speed and milling angle
- LED speed display for better control
- Option for accessories such as sliding table and chassis
- Suitable for precision woodwork
Cons
- The machine weight of 174 kg makes it less mobile
- Accessories such as the sliding table must be purchased separately
Specifications
- Model: TF 190SE
- Manufacturer: Holzstar
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Drive power: 2.2 kW
- Power consumption: 2.8 kW
- Milling unit angle: -5° to +30°
- Milling spindle length: 100 mm
- Milling spindle stroke: 100 mm
- Max. tool diameter lowerable: 200 mm
- Spindle diameter: 30 mm
- Speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
- Speed control: Belt
- Speed display: LED on the front of the machine
- Extraction opening: 100 mm
- Worktable: 710 × 640 mm
- Table height: 900 mm
- Sliding table length: 1200 mm
- Sliding table width: 700 mm
- Sliding table height: 500 mm
- Machine dimensions (L×W×H): 750 × 660 × 1200 mm
- Weight: 174 kg
- VPE: 1 pc
The Holzstar TF 190E / 400V is a powerful table router designed for stationary use in workshops where precision and operational safety are required. It is typically used for milling profiles, grooves, and edges in wooden parts.
The machine is powered by a 400V motor, which enables stable and efficient power transmission suitable for longer work sessions and processing harder types of wood. The construction is robust and ensures minimal vibrations during operation.
The table router is part of Holzstar's range of machines, known for solid workshop equipment for both professionals and demanding hobby users. The TF 190E model was developed with a focus on precision and user-friendliness in daily operation.
- 400V motor: Provides high and stable performance for demanding milling work.
- Stationary construction: Ensures precision and stability during work.
- Suitable for woodworking: Designed for milling profiles, grooves, and edges.
- Robust construction: Reduces vibrations and increases accuracy.
Pros and cons
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Pros and cons
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Pros
- Powerful three-phase motor for professional use
- Stable and vibration-damped construction
- Suitable for precision work in wood
Cons
- Requires a 400V power supply, which limits use in standard household installations
- Relatively heavy and stationary – not intended for mobile use
Specifications
- Manufacturer: Holzstar
- Model: TF 190E
- Power supply: 400V
- Product type: Table router
- SKU: SM-5901923
Other products
The Holzmann FS200S is a stationary table router designed for precision woodwork. The machine is powered by a 400 V motor with an output of 2800 W (S1) and 3750 W (S6), providing sufficient power for both fine and heavy routing tasks.
The spindle can be tilted from -5° to 30°, allowing for bevel routing and more complex profiles. The table is made of solid grey cast iron, ensuring stability and reducing vibrations during operation.
The fence is made of aluminium and equipped with a hold-down system and fine adjustment, allowing the workpiece to be guided safely and precisely. The machine has four standard speeds (1800, 3000, 6000, and 9000 revolutions per minute), which can be read electronically on an LED display.
The FS200S comes with a sanding drum, router hood, aluminium fence, and roller hold-down. A sliding table can be purchased as an accessory and retrofitted if required.
- Tilting spindle: Adjustable from -5° to 30° for flexible routing.
- Cast iron table: Provides stability and reduces vibrations.
- Precise fence: With hold-down system and fine adjustment for accurate work.
- Four speeds: 1800, 3000, 6000, and 9000 rpm for various routing tasks.
- LED display: Shows the current speed electronically.
Pros and cons
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed levels with electronic display
- The machine weight of around 191 kg requires a fixed location
- The sliding table is an accessory and not included as standard
Pros and cons
Pros
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed levels with electronic display
Cons
- The machine weight of around 191 kg requires a fixed location
- The sliding table is an accessory and not included as standard
Pros
- Powerful motor with 400 V operation
- Stable cast iron construction
- Adjustable spindle angle for flexibility
- Precise fence with fine adjustment
- Multiple speed levels with electronic display
Cons
- The machine weight of around 191 kg requires a fixed location
- The sliding table is an accessory and not included as standard
Specifications
- Motor power S1 / S6: 2800 W / 3750 W
- Voltage: 400 V
- Table size: 710 x 640 mm
- Table height: 900 mm
- Extraction port: 100 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle diameter: 30 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Table opening: 200 mm
- Fence: 360 x 120 mm
- Weight: 191 kg
- Model: FS200S-400V
- Manufacturer: Holzmann

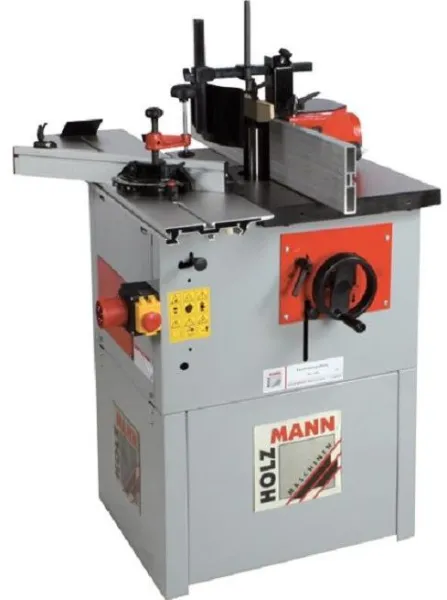

The Holzmann FS160L 400V is a table router designed for versatile milling work in wood. The machine is equipped with a solid cast iron table that ensures stability during operation, as well as an aluminium sliding table measuring 1000 x 215 mm that provides good support for workpieces.
The router can tilt up to 60 degrees to both sides and features both mitre and folding fences, making it suitable for precision work at various angles. Its compact design also makes it easy to place in smaller workshops without compromising functionality.
The machine comes with an interchangeable spindle that can be used for end milling, as well as hold-downs for mitre and cross milling. The dynamically balanced milling spindle contributes to smooth and precise results.
Safety is prioritised through CE-certified protection, height-adjustable safety guide, and emergency stop. The combination of a powerful motor and precise adjustment options makes the FS160L 400V suitable for both professionals and experienced hobby users.
- Stable construction: Cast iron table and aluminium sliding table ensure vibration-free operation.
- Flexible spindle: Interchangeable spindle for standard and end milling work.
- Adjustable angle: The table can tilt up to 60° to both sides for precision work.
- Safe operation: CE-certified protection with emergency stop and height-adjustable safety guide.
- Compact design: Space-saving construction that fits into most workshops.
Pros and cons
- Solid and vibration-free cast iron construction
- Possibility of precise angle adjustments up to 60°
- Interchangeable spindle offers flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Pros and cons
Pros
- Solid and vibration-free cast iron construction
- Possibility of precise angle adjustments up to 60°
- Interchangeable spindle offers flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
Cons
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Pros
- Solid and vibration-free cast iron construction
- Possibility of precise angle adjustments up to 60°
- Interchangeable spindle offers flexibility in use
- Safety equipment with emergency stop and adjustable guard
- Suitable for both professionals and experienced hobby users
Cons
- Relatively high weight of 108 kg can make moving difficult
- Requires 400V power supply, which is not available in all workshops
Specifications
- Model: FS160L 400V
- Manufacturer: Holzmann
- Sliding table: 1000 x 220 mm
- Extraction port: 100 mm
- Table height: 850 mm
- Table dimensions: 600 x 400 mm
- Max. clamping height: 105 mm
- Max. tool diameter: 150 mm
- Max. tool diameter above table: 170 mm
- Spindle length: 110 mm
- Spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 170 mm
- Milling fence: 350 x 125 mm
- Motor power (S1/S6): 1500 W / 2100 W
- Voltage: 400 V
- Net weight: 108 kg
- Package dimensions (L x W x H): 650 x 630 x 530 mm
- Scope of delivery: Interchangeable cutter (ø 12 mm), mitre fence and clamp, milling guard
The Holzstar TF 190E / 230V is a table router designed for precision work in wood. It is constructed as a stationary machine that provides stability and control when routing edges, profiles, and joints.
The machine is powered by a 230V motor, making it compatible with standard electrical installations. The fixed table construction provides a solid working surface, and the milling unit can be adjusted to achieve precise results for various routing tasks.
The TF 190E model is part of the Holzstar series of woodworking machines, known for their robustness and user-friendliness. It is suitable for both smaller workshops and professional environments where precision and operational safety are required.
- 230V operation: Can be connected to standard electrical installations without requiring an industrial plug.
- Stable construction: Stationary machine with a fixed table for precise work.
- Adjustable milling unit: Allows precise settings for various routing tasks.
- Suitable for woodworking: Designed for routing edges, profiles, and joints.
Pros and cons
- Solid and stable construction
- Can be operated with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
- Requires a fixed workspace and sufficient space in the workshop
- No information about included accessories or specific technical data on the product page
Pros and cons
Pros
- Solid and stable construction
- Can be operated with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
Cons
- Requires a fixed workspace and sufficient space in the workshop
- No information about included accessories or specific technical data on the product page
Pros
- Solid and stable construction
- Can be operated with standard 230V power
- Suitable for precision work in wood
- Fits both workshops and professional users
Cons
- Requires a fixed workspace and sufficient space in the workshop
- No information about included accessories or specific technical data on the product page
Specifications
- Manufacturer: Holzstar
- Model: TF 190E / 230V
- Product type: Table router
- Power supply: 230V
- SKU: SM-5901921
The Holzmann FS200S 230V is a table router constructed with a solid cast iron table that ensures stability and reduces vibrations during operation. The machine is equipped with a high-quality milling fence that includes a hold-down system and fine adjustment capability, allowing precise guidance of the workpiece.
The spindle can be rotated from -5° to +30°, allowing for angled milling and adjustment of the work process as needed. The router offers four standard speeds, enabling the user to select the optimal speed for different materials and tool diameters.
A large handwheel makes it easy to adjust the spindle height, and the speed can be read directly on an LED display for better control. The machine can be equipped with a rolling table as an accessory, expanding its usability for larger workpieces.
The FS200S comes with an aluminium fence and milling guard, and its technical specifications show a powerful motor delivering up to 3750 W in S6 operation. The combination of power, precision, and solid design makes it suitable for both workshops and small-scale production.
- Cast iron table: Provides stability and reduces vibrations during milling.
- Adjustable spindle range: Rotatable from -5° to +30° for flexible work tasks.
- Four milling speeds: Allows adjustment for different materials and tools.
- LED display: Clearly shows the speed for precise control.
- Powerful motor: Up to 3750 W in S6 operation ensures high performance.
Pros and cons
- Solid cast iron construction
- Precise milling fence with fine adjustment
- Multiple speed levels
- Option for spindle angle adjustment
- LED display for easy reading
- Rolling table not included as standard
- Machine weight of 170 kg requires a fixed location
Pros and cons
Pros
- Solid cast iron construction
- Precise milling fence with fine adjustment
- Multiple speed levels
- Option for spindle angle adjustment
- LED display for easy reading
Cons
- Rolling table not included as standard
- Machine weight of 170 kg requires a fixed location
Pros
- Solid cast iron construction
- Precise milling fence with fine adjustment
- Multiple speed levels
- Option for spindle angle adjustment
- LED display for easy reading
Cons
- Rolling table not included as standard
- Machine weight of 170 kg requires a fixed location
Specifications
- Model: FS200S 230V
- Motor power S1/S6: 2800 / 3750 W
- Voltage: 230 V
- Extraction port: 100 mm
- Table height: 900 mm
- Table size: 710 x 640 mm
- Max. tool diameter above table: 190 mm
- Max. tool diameter below table: 190 mm
- Spindle rotation: -5° to +45°
- Max. clamping height: 105 mm
- Spindle length: 100 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Spindle diameter: 30 mm
- Table opening: 200 mm
- Milling fence: 360 x 120 mm
- Net weight: 170 kg
- Package dimensions (L x W x H): 760 x 690 x 700 mm
- Scope of delivery: Aluminium fence, milling guard
Different types of table routers
Table routers come in several variants that differ in size, construction and area of use. Your choice depends on how often you use the machine and what type of tasks you handle.
1. Compact table routers
These models are ideal for hobby use and smaller workshops. They are easy to transport, take up little space and are suitable for lighter routing tasks such as edge profiling and small joints. However, they often have limited motor power and table size.
2. Semi-stationary table routers
A mid-range solution that combines mobility with higher performance. They have more powerful motors and more stable tables, making them suitable for both hobby and semi-professional applications. Many models can be mounted on workbenches for additional stability.
3. Stationary table routers
These machines are designed for professional use and continuous operation. They have powerful motors, large tables and advanced adjustment options. They are suitable for precision work, series production and processing large workpieces.
4. Combined models
Some table routers can be used both as stationary and handheld routers. This offers great flexibility, as you can use the same machine for precision work on the table as well as for freehand routing directly on the workpiece.
Different brands of table routers
The market for table routers includes many manufacturers, each with their own focus and strengths.
Bosch
Bosch offers table routers that combine high quality, ease of use and precision. They are popular with both professionals and DIYers and are characterised by solid construction and reliable motors.
Makita
Makita is known for robust and reliable machines. Their table routers often feature powerful motors, precise adjustment options and good ergonomics, making them suitable for demanding tasks.
Dewalt
Dewalt focuses on performance and durability. Their models are often equipped with advanced safety features and precision components, making them popular in professional workshops.
Triton
Triton specialises in routing solutions and offers table routers with innovative features such as micrometre adjustment and easy cutter changes. They are aimed at users who want high precision and flexibility.
Einhell
Einhell produces affordable table routers that are well suited for hobby use. They offer good functionality for the price and are a good choice for beginners who want to try routing.
Frequently asked questions
What is a table router used for?
A table router is used for shaping, profiling and processing wood. It can create edges, joints, grooves and decorative profiles with high precision and consistency.
Can you use regular handheld routers in a table?
Yes, many handheld routers can be mounted in a router table using a suitable plate or adapter. This provides better control and stability for repeated cuts.
What materials can be routed?
Table routers are mainly used for wood and MDF, but with the right cutters they can also process plastics and soft metals such as aluminium. However, it is important to choose the right speed and cutter.
How do you maintain a table router?
Keep the table and moving parts free of dust and chips, lubricate the adjustment mechanisms regularly and check the cutters for wear. Also make sure that collets and bearings are in good condition.
Are table routers safe to use?
Yes, when used correctly. Always wear safety glasses, hearing protection and push sticks, and make sure the workpiece is securely clamped. Always read the manufacturer’s safety instructions before you start.
Læs også:
